| 名稱 | Product specifications | Storage Environment | Operation Environment | Environment | Electrical specifications | Delivery Formats | Options |
|---|---|---|---|---|---|---|---|

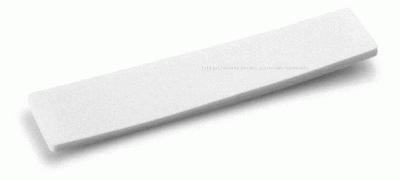

| 矽膠條 TAG | Size : 115x18x1.5 mm Material : Silicone Color : Red, Yellow, Blue,White, Limpid |
-40℃ to +200℃ 10% to 95% |
-20 to 85゜C 10 to 95%RH Write cycles 100,000 |
Low service temp.: -40℃ Heat resistance: Short term 10 mins/hr: +200℃ Long term 7 days : +150℃ Adhesion to Stainless: 1.6 kg/25mm |
ISO : 18000-6C EPC : class 1 Gen2 EPC memory: 96 bits Operating Frequency : 860 ~ 960 MHz Mode of operation : Passive IC : Impinj Monza 3 |
Package size: 100/box | Pad Printing Customize: color, size |
| 矽膠條 TAG-2 | Size : 56x12x1.5 mm Material : Silicone Color : Red, Yellow, Blue,White |
-40℃ to +200℃ 10% to 95% |
-20 to 85゜C 10 to 95%RH Write cycles 100,000 |
Low service temp.: -40℃ Heat resistance: Short term 10 mins/hr: +200℃ Long term 7 days : +150℃ Adhesion to Stainless: 1.6 kg/25mm |
ISO : 18000-6C EPC : class 1 Gen2 EPC memory: 96 bits Operating Frequency : 860 ~ 960 MHz Mode of operation : Passive IC : Impinj Monza 3 |
Package size: 100/box | Pad Printing Customize: color, size |

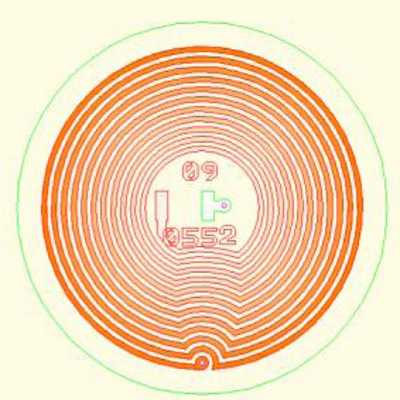

| HF 15693 | Dry Inlay specifications Antenna Size : Dia. 13 mm Antenna Material: Cu/PI Antenna Thickness: 0.025 mm Inlay Size Dia.: 15 mm Inlay thickness: 0.5 mm |
Shelf Life: 10 Years Storage: -20℃ to +120℃,20% to 90% Heat resistance: +200℃ 8 hrs Write cycles:100,000 |
Low service temp.: -40℃ Heat resistance: Short term 10 mins hr: +200℃ Long term 7 days : +150℃ Adhesion to Stainless: 1.6 kg/25mm |
ISO : 15693 Operating Frequency: 13.56 MHz Memory : 1024 bits IC : I code SLI Mode of operation : Passive Reading distance : Depending on reader |
Available Product Formats : Dry,Wet Inaly,Label Deliver form : Roll, Sheet |
||
| ISO 15693 compliance | Size Dia.: 16x2.8 mm Material :PPS Color : Standard: black,Customize |
-20℃ to +180℃ 20% to 90% Delivery Formats Write cycles : 20,000 Wet clean : 120ºC 1 hr Baking : 160ºC 1 hr Iron : 200ºC (Up to 20 sec) Wash cycle: > 200 cycle Chemical Resistance |
ISO 15693 ISO 18000-3 Memory: 1024 bits Operating Frequency: 13.56 MHz Mode of operation : Passive IC : NXP I-code SLI |
Package size : 500/box Minimum order : 1000 ea. |
Laser marking Print marking Customize: color, size |
